US EU UK AU plug power adapter 30W 15V ac dc charger 2a
GF-A 36W Wall Series
48v30w (4).jpg
48v30w (3).jpg
48v30w (1).jpg
48v30w (2).jpg

US EU UK AU plug power adapter 30W 15V ac dc charger 2a

Gofern power is a professional leader and experienced manufacturer of switching power supply and power adapter in China. Our products are widely used in many fields and all over the world with high quality and reasonable price. Please write message to us now!

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test

    Contact us
    Product Details

    Specification

    MODEL GF-3001502NS
    OUTPUT DC VOLTAGE 15V
    OUTPUT POWER 30W
    CURRENT RANGE 2A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    CONNECTOR 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
    DC CABLE 1.15M or  customized requirement
    INPUT AC CABLE US UK AU EU KR IN etc.
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 94*46*33mm
    WEIGHT 0.5Kg/PCS
    SHELL MATERIAL Black plastic or white plastic

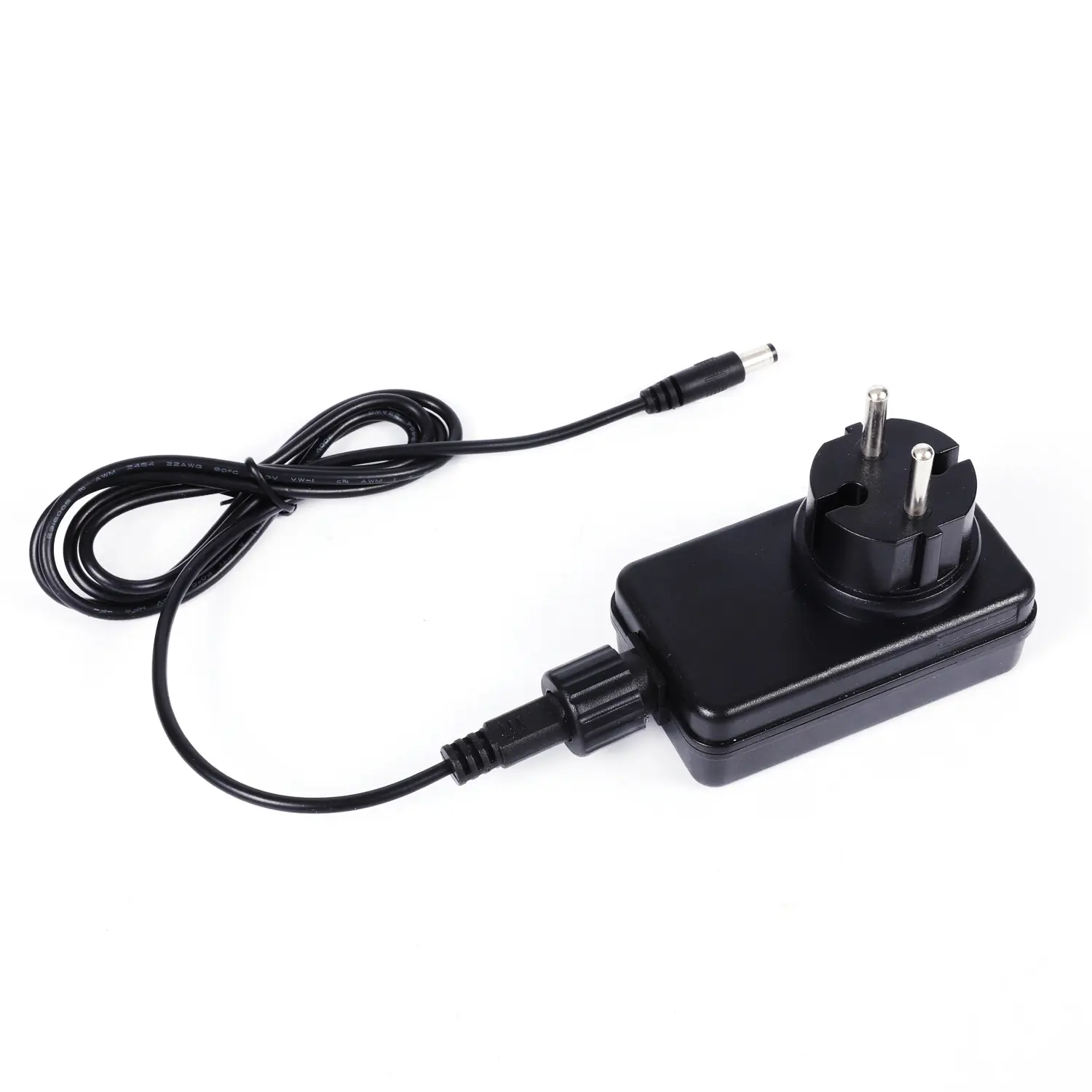

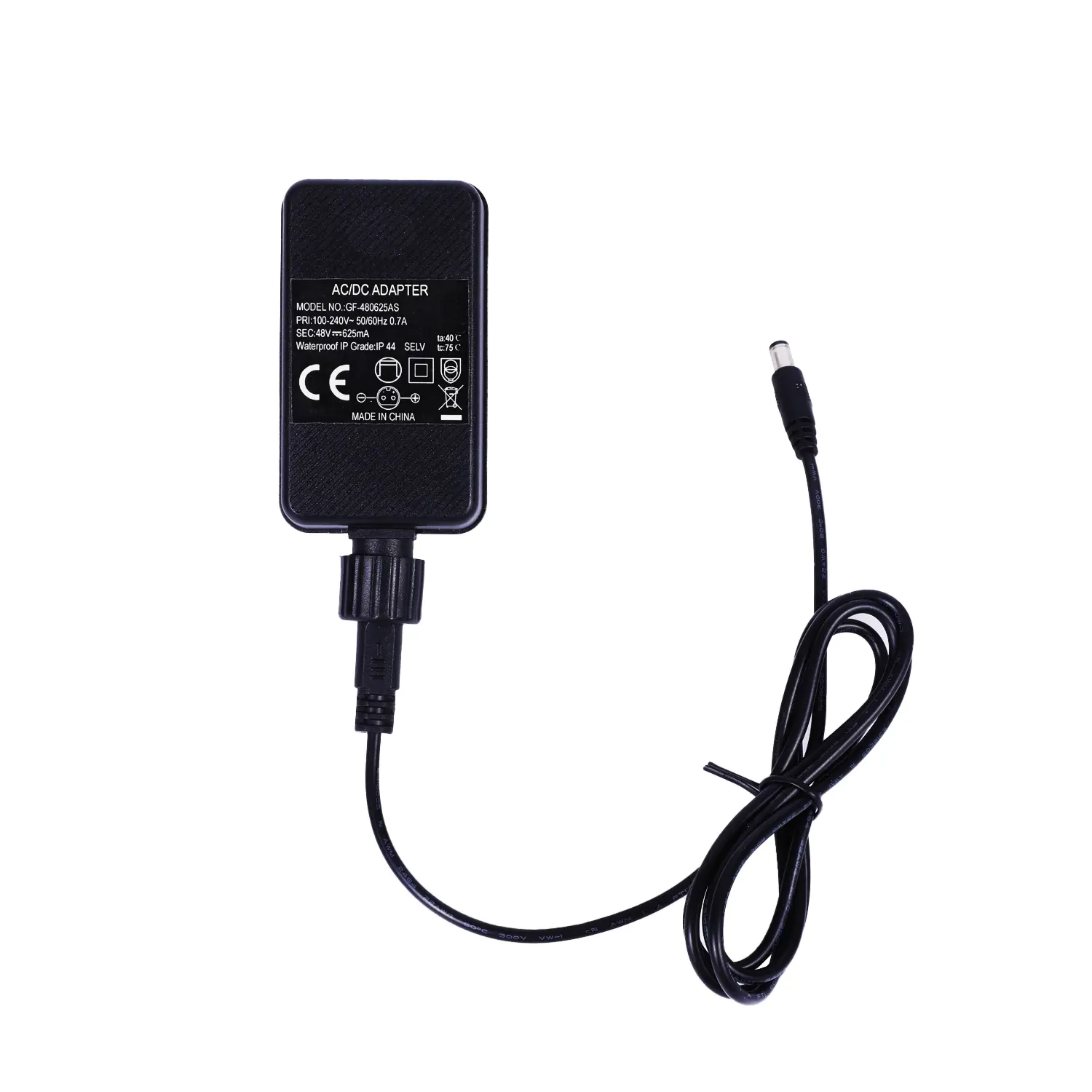

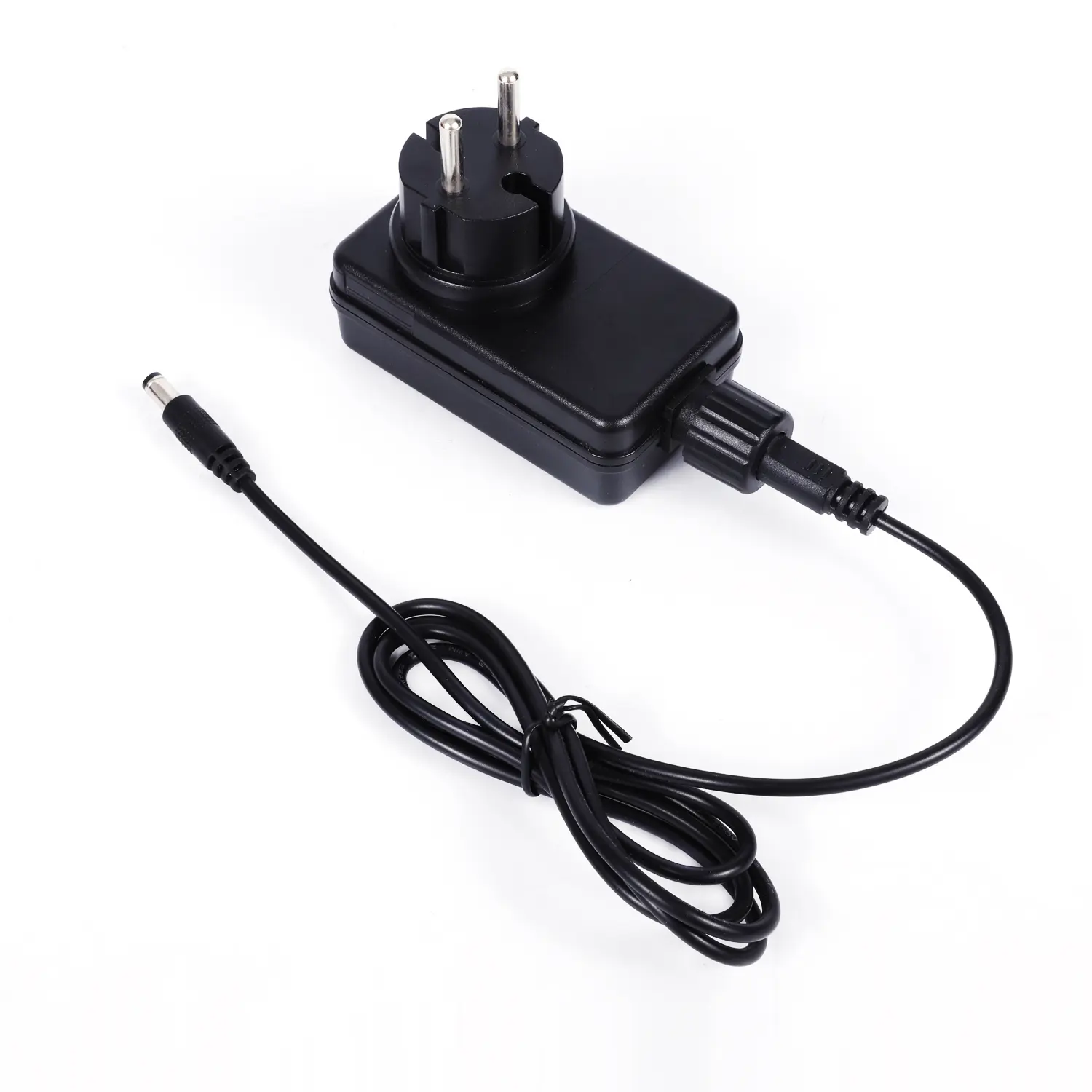

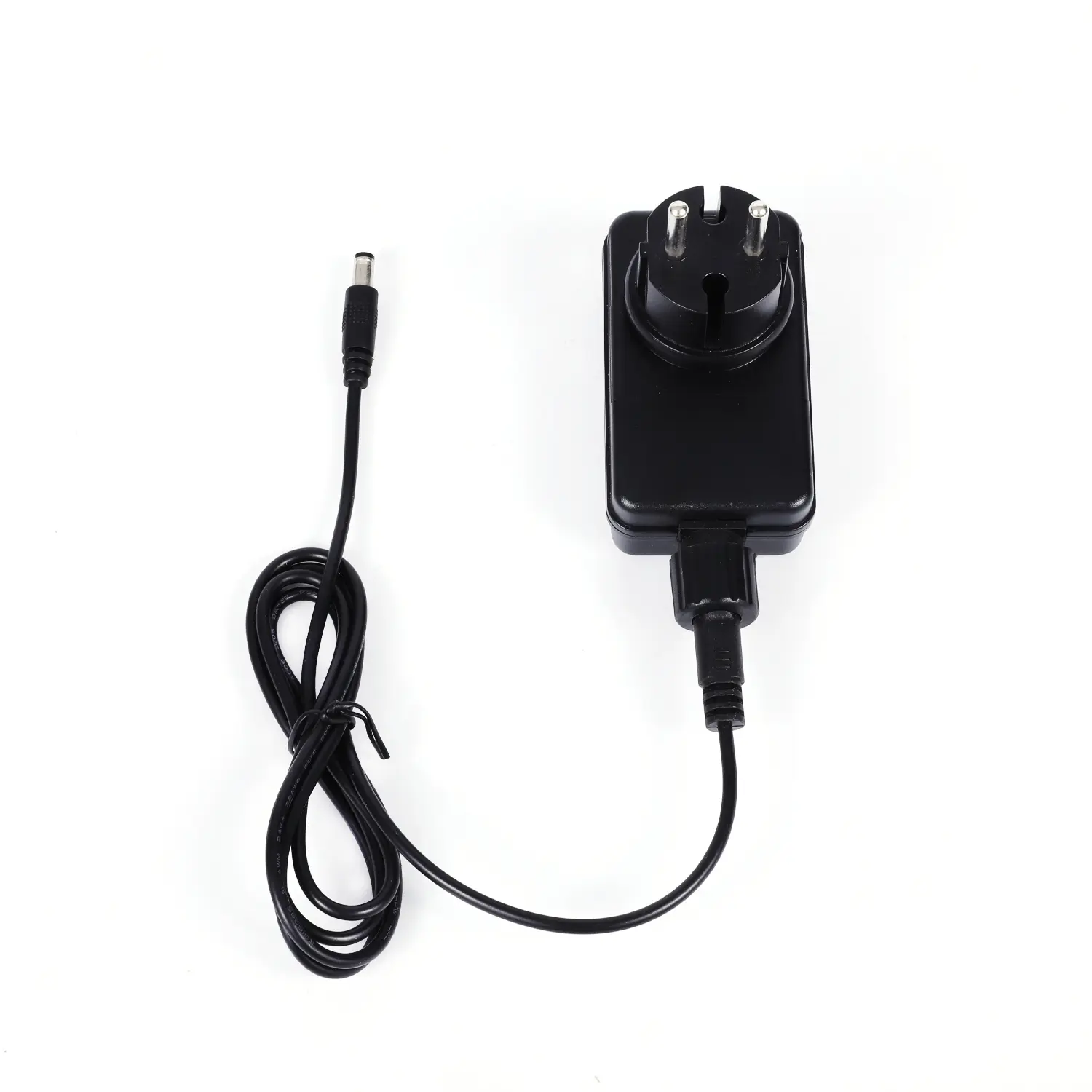

    Product Pictures



    48v30w (2)48v30w (3)48v30w (4)48v30w (1)

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    Gofern Power adapters are the ultimate solution for all your electronic power needs. With its high quality construction, long service life, wide range of applications, energy saving capabilities and international certification, it is ideal for printers, electronic screens, LED light strips, CCTV cameras and laboratory equipment. With our power adapters, you can power your lights with a reliable and consistent energy source, providing bright and consistent lighting Join the countless satisfied customers who have benefited from our professional power solutions. Experience the difference of High sails today and build strength with confidence.

    FAQ

    Frequently Ask Questions
    We are professional electric switching power supply consulting, design, solution provider and manufacturer. Our mainly products including industry power supplies, communication device power supplies, power adapters, led power supply,etc.
    learn more

    Q1: Can we have our brand logo?

    A: Yes of course, please send us the artwork of your design, we have a professional team which is having rich experience on OEM&ODM.

    Q2: Do you inspect the finished products?

    A: Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspection to ensure good quality products. Our current quality level for linear adapters is below 100PPM.

    Q3: Price term?

    A: EXW/FOB/CIF/FCA.

    Q4: Why should you buy from us not from other suppliers?

    A: We are the leading manufacture in switching power supply. The price and quality are competitive in the market, Professional design team and after-sales service.

    Q5: If it will cause a extra cost for doing the logo on the product?

    A: If the order quantity is small, a small fee will be charged, if the order quantity is large, it will not be required.

    Q6: We are online seller, if you can provide the professional picture pack to us?

    A: Yes, please leave your company website and contact information. Our sales person will send you the picture pack straightly!
