Universal PSU 53V 1.6A Dc Power Supply Adapter
GF 84W series
60-70-80 (2).jpg
60-70-80 (3).jpg
60-70-80 (5).jpg

Universal PSU 53V 1.6A Dc Power Supply Adapter

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test



Gofern, a reputable and proficient Chinese company, excels in manufacturing switching power supplies and power adapters. Our extensive range of products finds broad application across various industries worldwide, known for their superior quality and competitive pricing.

    Contact us
    Product Details

    Specification

    MODEL GF-531684NS
    OUTPUT DC VOLTAGE 53V
    OUTPUT POWER 84W
    CURRENT RANGE 1.6A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    CONNECTOR 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
    DC CABLE 1.15M or  customized requirement
    INPUT AC CABLE US UK AU EU KR IN etc.
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 132*56*39mm
    WEIGHT 0.38Kg/PCS
    SHELL MATERIAL Black plastic or white plastic

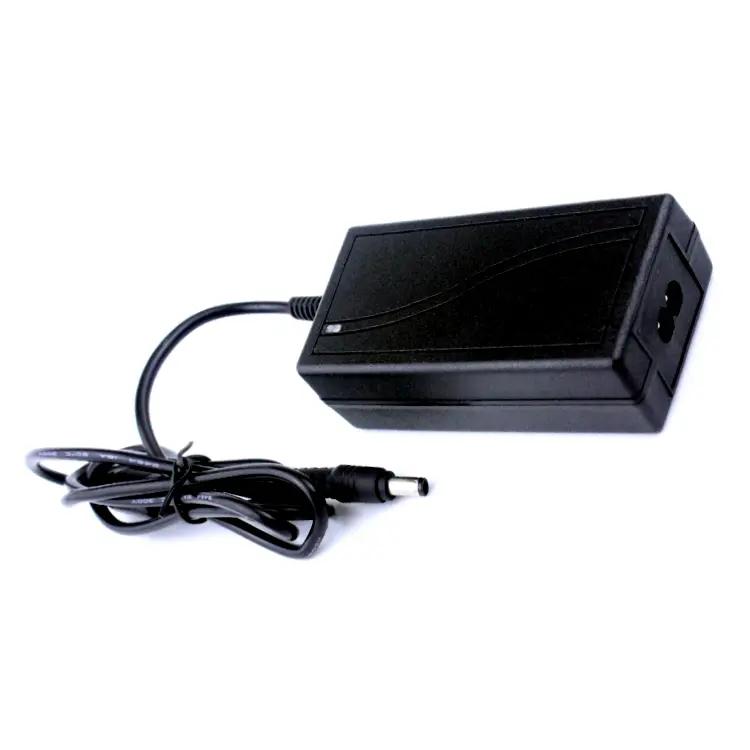

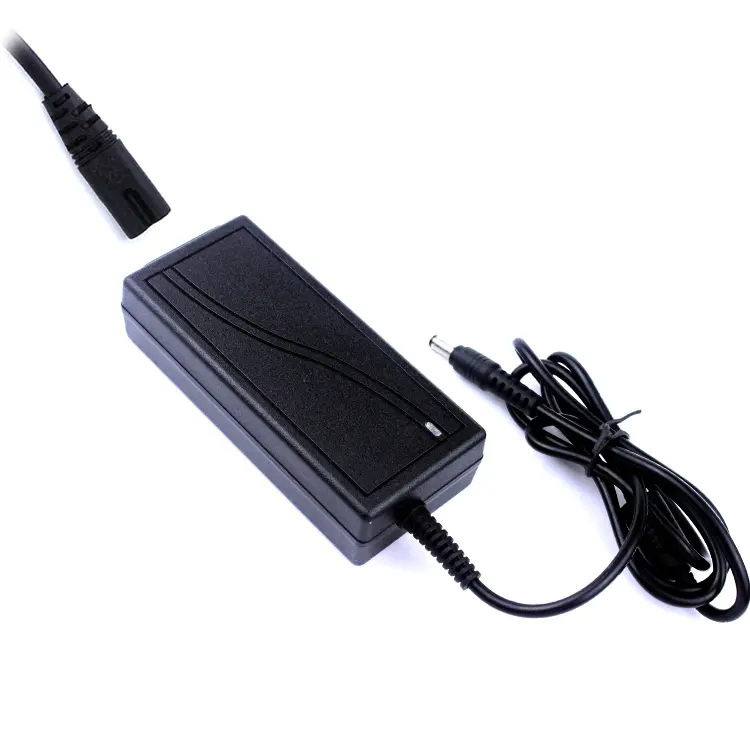

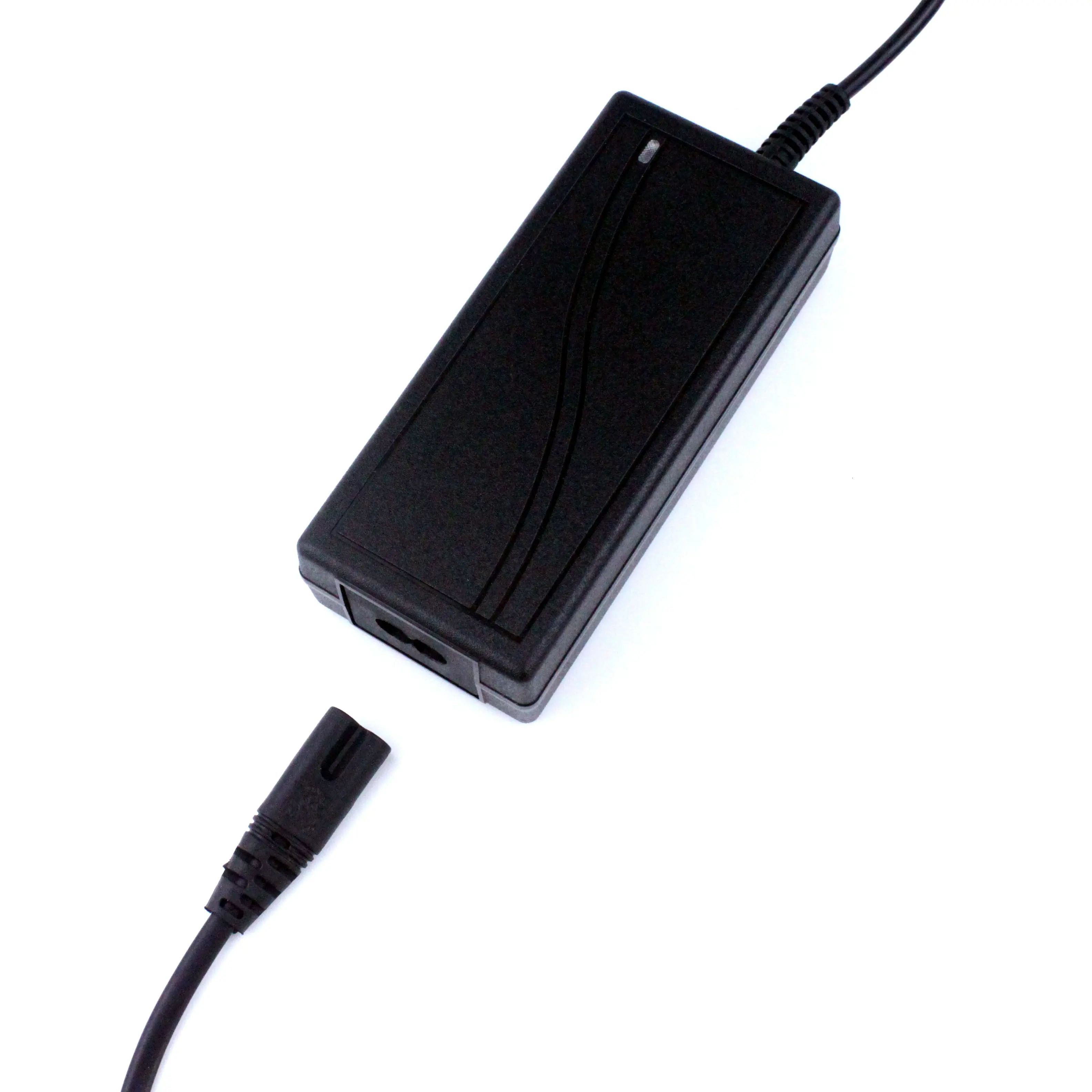

    Product Pictures



    60-70-80 (5)ren60-70-80 (3)2pk60-70-80 (2)hrj60-70-80 (3)5sv

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    In terms of user-friendly features, this AC/DC power supply is excellent. Its parts are arranged neatly, exquisite workmanship, and the circuit board is designed by professional engineers. It can ensure that the power supply accurately provides output voltage and current information.
    In addition, the AC/DC power supply supports remote control and monitoring through a variety of communication interfaces. This enables seamless integration into existing control systems, providing enhanced flexibility and convenience. Whether used in industrial automation or smart grid systems, the power supply offers a wide range of connectivity options.

    FAQ

    Frequently Ask Questions
    We are professional electric switching power supply consulting, design, solution provider and manufacturer. Our mainly products including industry power supplies, communication device power supplies, power adapters, led power supply,etc.
    learn more

    Q1: What's the MOQ?

    A: 1 piece.

    Q2: What's delivery time?

    A: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.

    Q3: Can you send the video to show how the machine works?

    A: Certainly, we have video of machine, please feel free to contact us, we will send you machine video.

    Q4: What certificates do you have ?

    A: We have approved CE,RoHs,SAA,CCC,FCC,KC,CTICK,CB, etc Certificates.

    Q5: Can we print our logo on the power?

    A: We could print with customer authorization.

    Q6: What is the warranty of your products?

    A:The warranty is 24 months; if the products do not work in the warranty period, please let us know them in detail and show us the relative picture, we will give after-sale service according to the situation.
