Do you know what details you need to know when using a PCB power supply?

Do you know what details you need to know when using a PCB power supply?

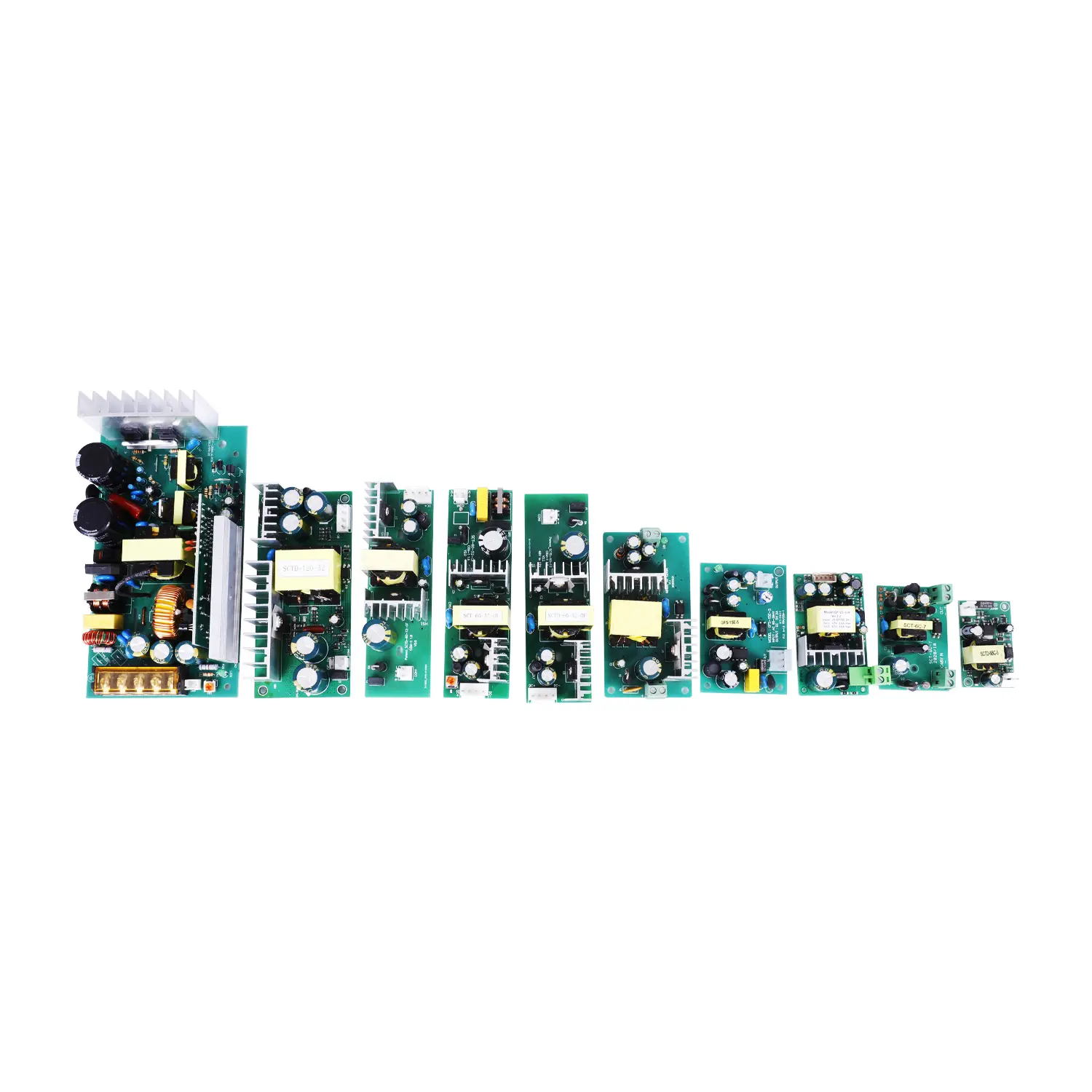

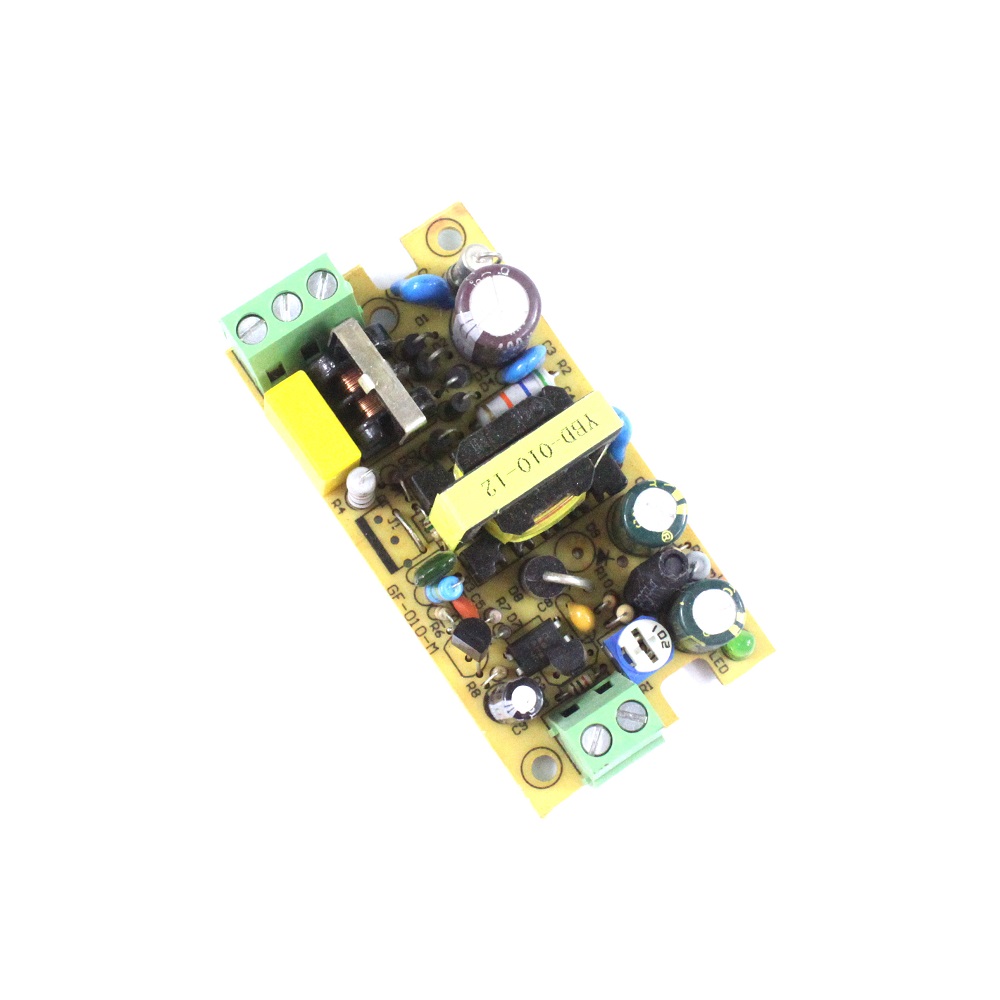

PCB power supplies, also known as open-frame power supplies, are compact, cost-effective solutions widely used in industrial, telecom, and embedded systems. Unlike enclosed power supplies, they offer flexibility and space-saving advantages—but require careful handling to maximize performance and safety.

Why Choose PCB Power Supplies?

Space Efficiency: Their open design allows seamless integration into tight spaces, ideal for PCB-mounted applications.

Cost-Effective: Eliminating metal enclosures reduces material costs without compromising functionality.

Customizability: Engineers can tailor cooling solutions (e.g., heat sinks) and shielding based on specific project needs.

High Power Density: Delivers robust performance for applications like robotics, IoT devices, and medical equipment.

Critical Usage Tips

Thermal Management: Ensure proper airflow or add heat sinks to prevent overheating.

Electrical Isolation: Avoid contact with conductive surfaces to prevent short circuits.

EMI Shielding: Use external shielding if the application is sensitive to electromagnetic interference.

Safety Compliance: Verify certifications (e.g., UL/CE) for your region’s standards.

Ideal Applications

From LED lighting to automation controllers, bare board power supplies excel where modularity and adaptability are key. Their lightweight design also benefits portable devices.

Pro Tip: Pair with high-quality connectors and perform rigorous testing under load conditions.
