AC to DC 12v 5a 4ch 60W cctv Power Supply Box with charging function
4 Channel
5A 4CH charger (3).jpg

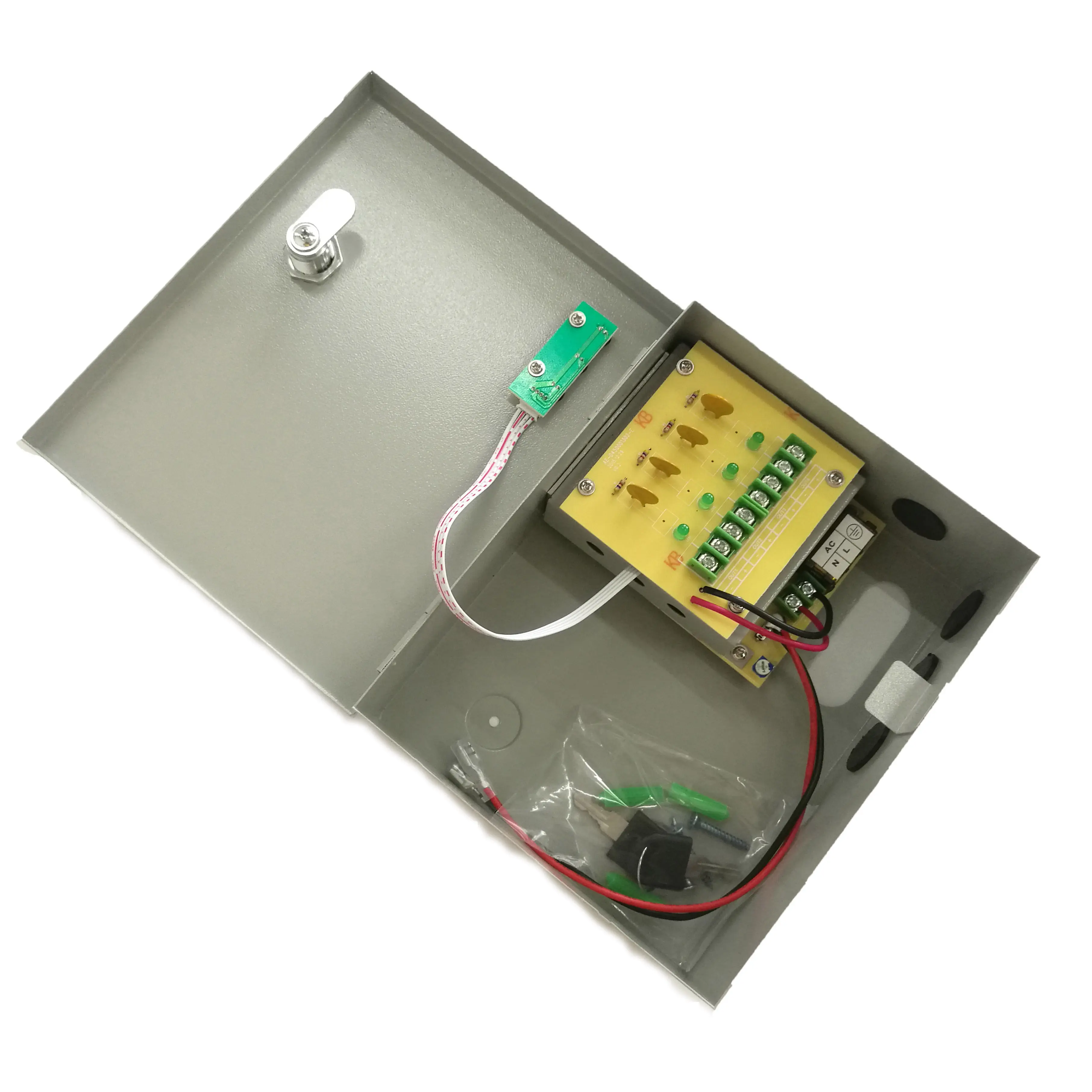

5A 4CH charger (5).jpg
5A 4CH charger (2).jpg

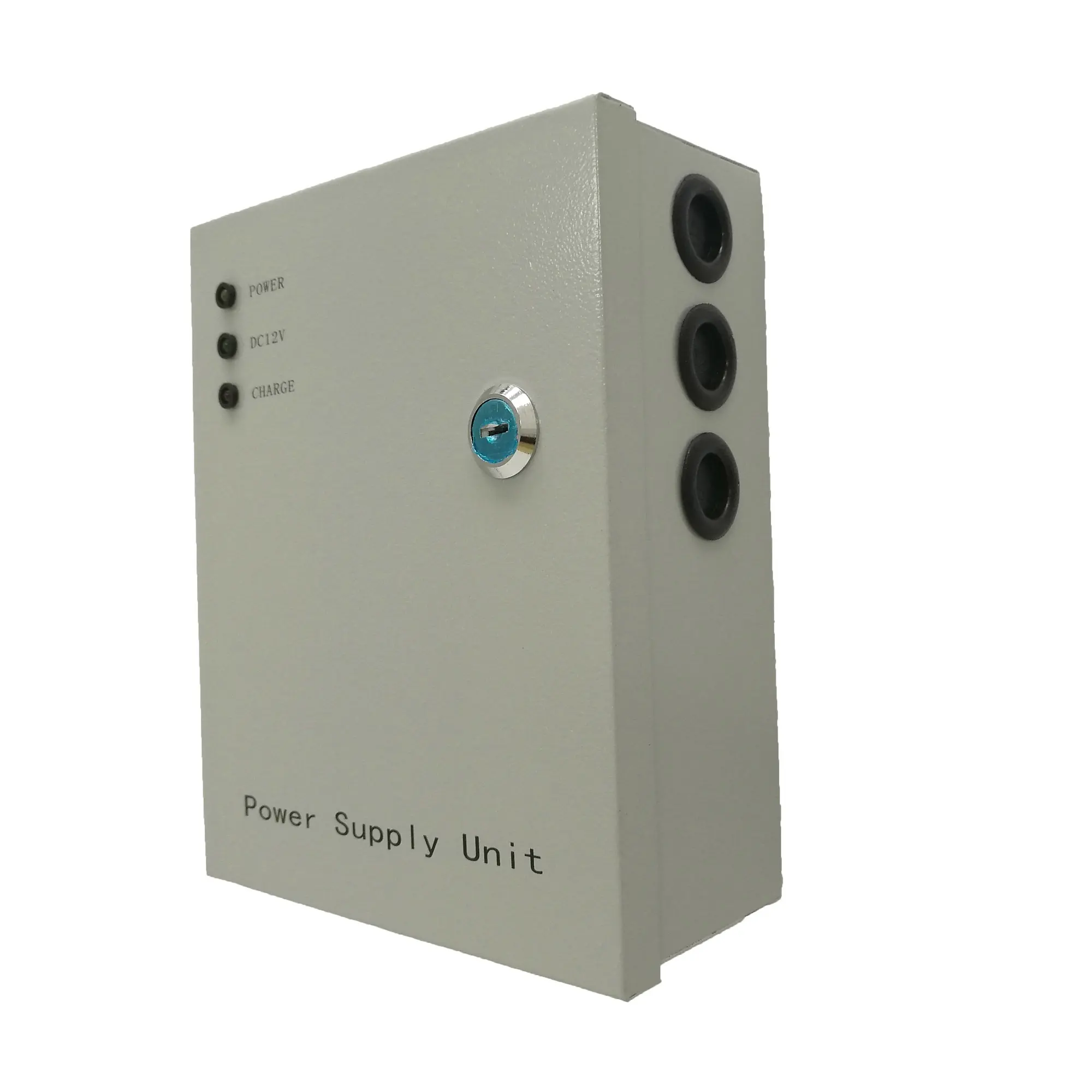

5A 4CH charger (6).jpg
5A 4CH charger (7).jpg
5A 4CH charger (4).jpg

AC to DC 12v 5a 4ch 60W cctv Power Supply Box with charging function

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test



Gofernpower is a professional leader and experienced manufacturer of switching power supply and power adapter in China. Our products are widely used in many fields and all over the world with high quality and reasonable price.
Please write message to us now!

    Contact us
    Product Details

    Specification

    OUTPUT DC VOLTAGE 12V
    OUTPUT POWER 60W
    CURRENT RANGE 5A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    INPUT
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 32*38*40mm
    SHELL MATERIAL Metal case



    Product Pictures

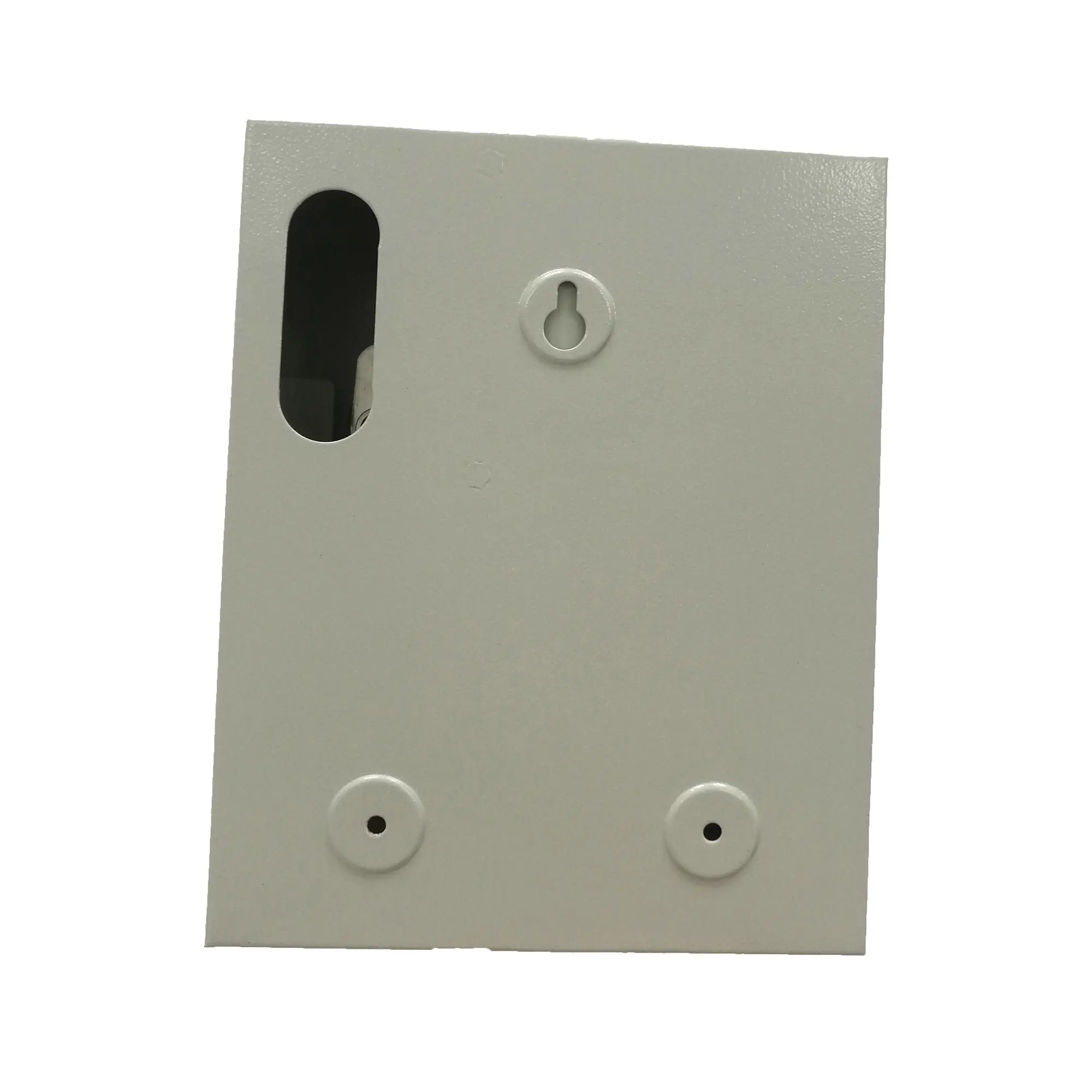

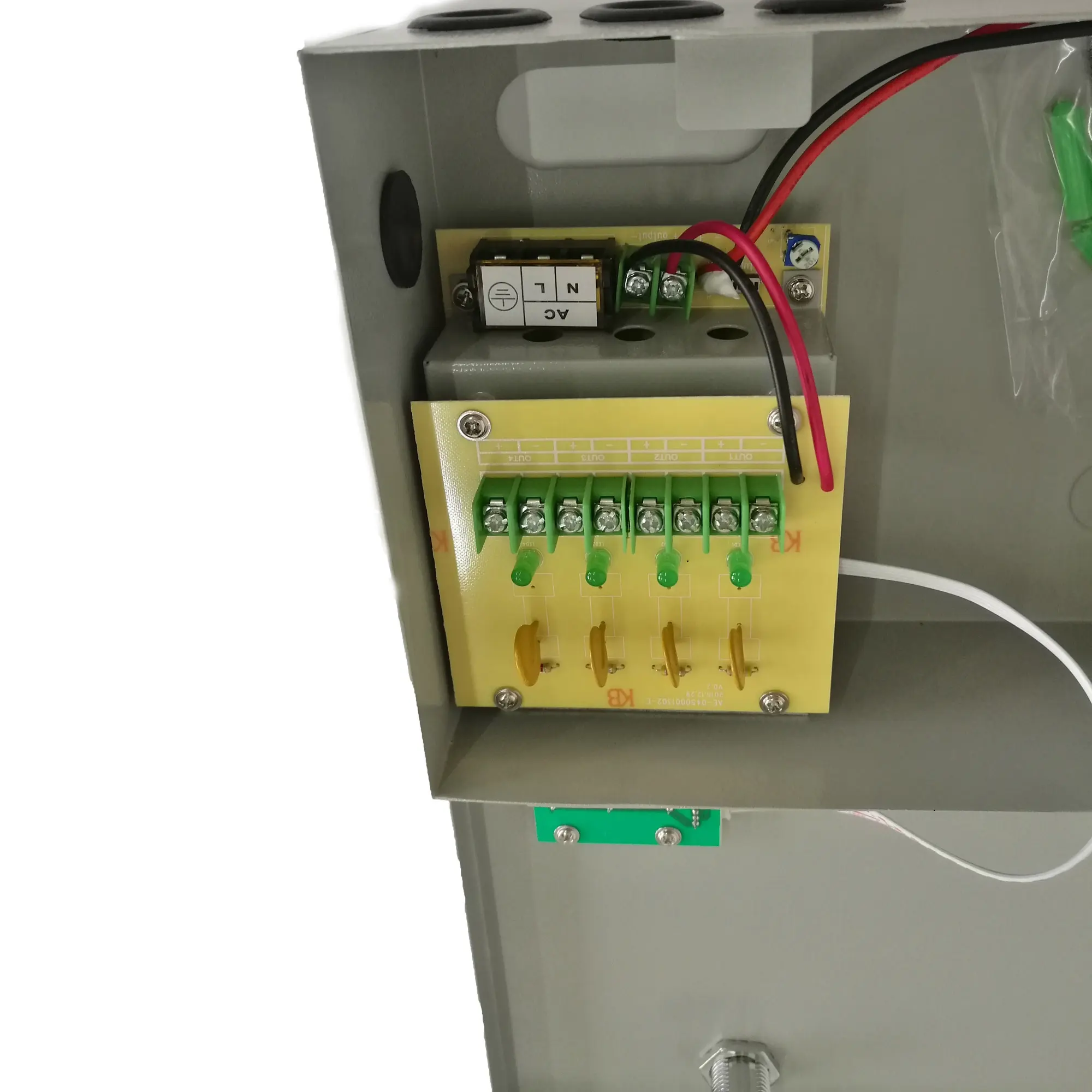

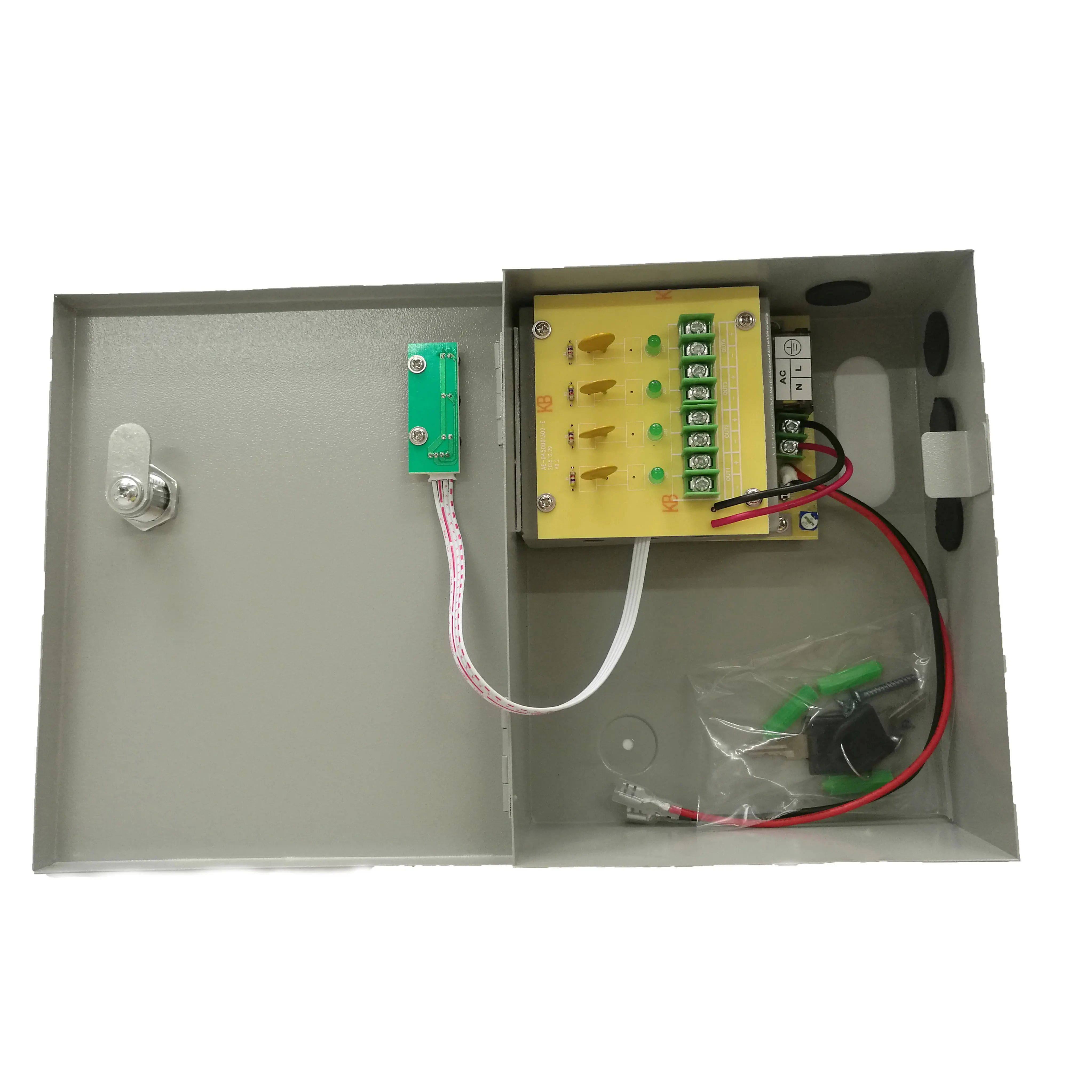

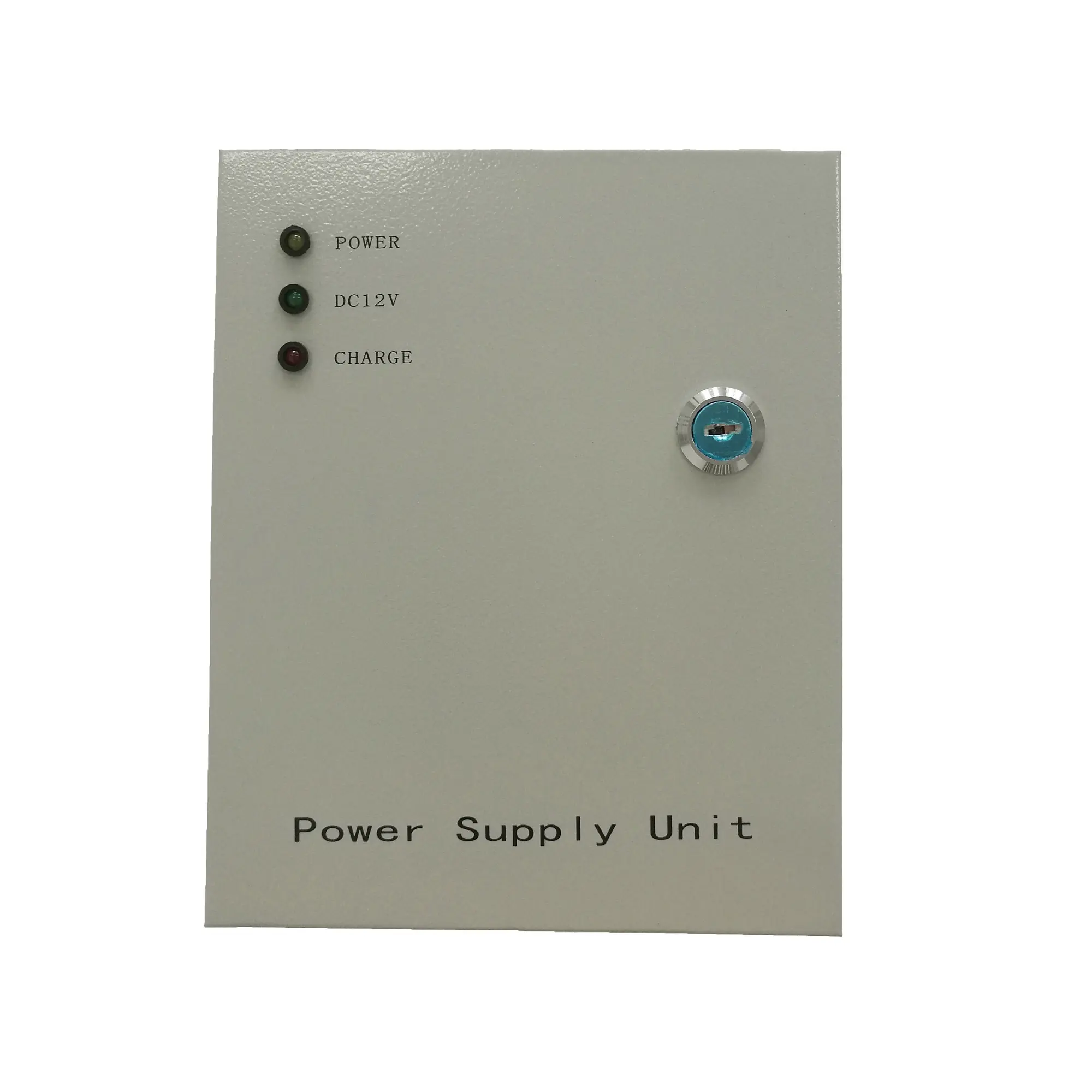

    5A 4CH charger (3)5A 4CH charger (2)5A 4CH charger (7)5A 4CH charger (4)

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    60W industrial equipment power supply is a high-quality, versatile choice suitable for a variety of industrial applications. Its excellent safety features, reliable power output, high efficiency, user-friendliness and durability make it the perfect solution for powering your valuable equipment. With this power supply, you can rest easy knowing your operation is backed by reliable, efficient power. Upgrade your power supply today and experience the benefits of superior performance and quality.
    In terms of compatibility, our power adapters are designed to work seamlessly with a wide range of devices. Whether you need to power printers, electronic screens, LED strips, CCTV cameras or laboratory equipment, our adapters have you covered. Its versatility makes it a must-have tool in any professional environment.
