GF-A 10W Wall Series

AC DC 12W 12v 1a Wall Power Supply Adapter

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test

Gofernpower is a professional leader and experienced manufacturer of switching power supply and power adapter in China. Our products are widely used in many fields and all over the world with high quality and reasonable price.
Please write message to us now!

Product Details

Specification

MODEL		GF-12020000D
OUTPUT	DC VOLTAGE	12V
	OUTPUT POWER	12W
	CURRENT RANGE	1A
	VOLTAGE ADJ. RANGE	±10%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	CONNECTOR	5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
	DC CABLE	1.15M or customized requirement
INPUT	AC CABLE	US UK AU EU KR IN etc.
	VOLTAGE RANGE	110~ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
	OVER VOLTAGE	Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR
OTHERS	CONNECTION TERMINAL	MARK: AC-L, AC-N, FG, GND, GND, DC+, DC-
	DIMENSION	523623mm
	WEIGHT	0.09Kg/PCS
	SHELL MATERIAL	Black plastic or white plastic

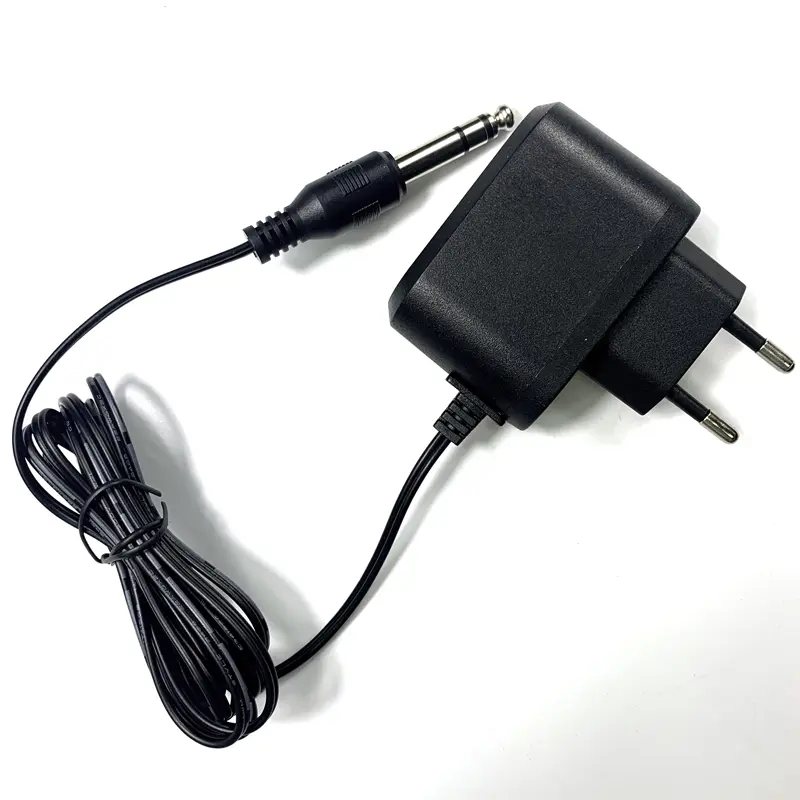

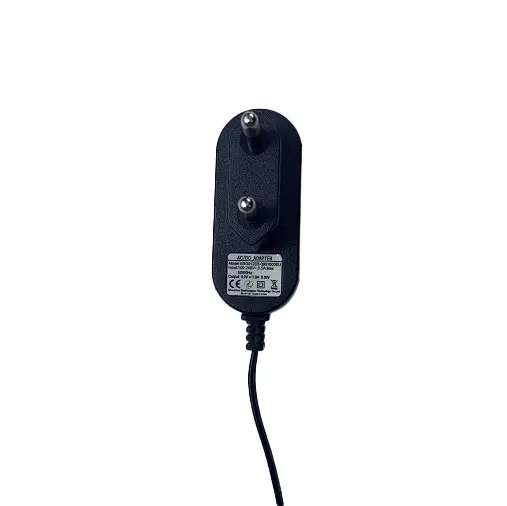

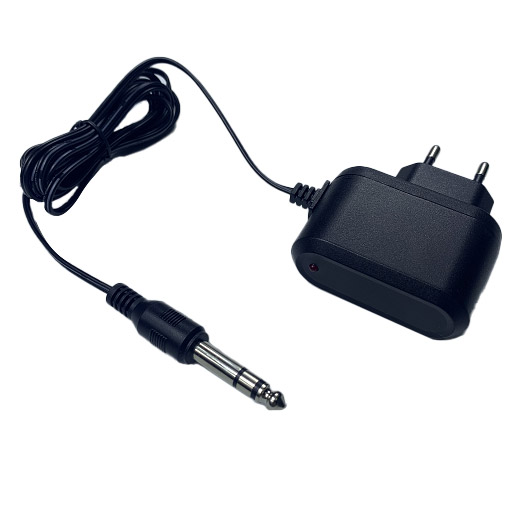

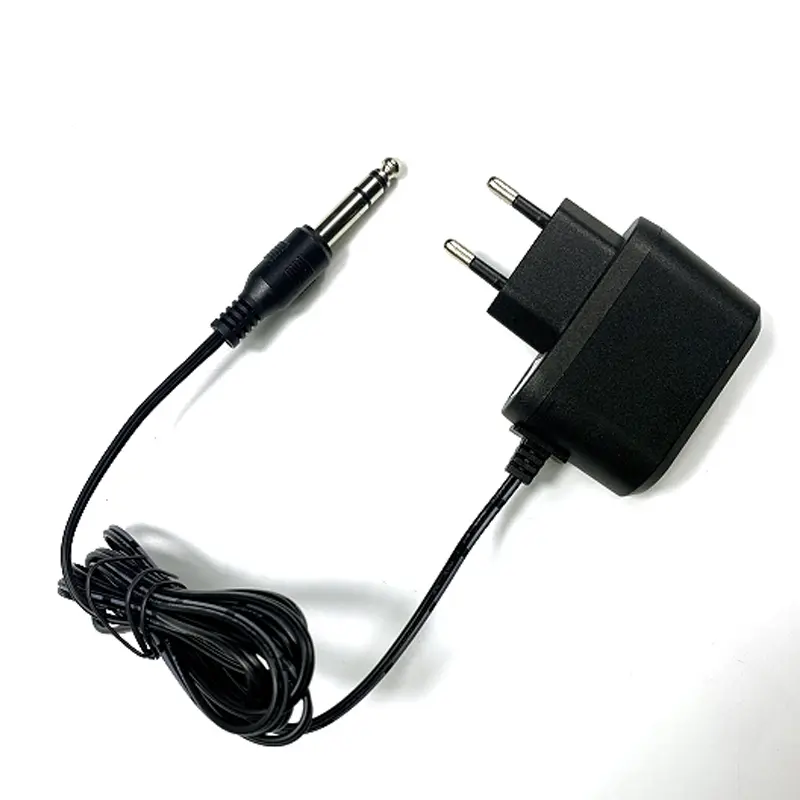

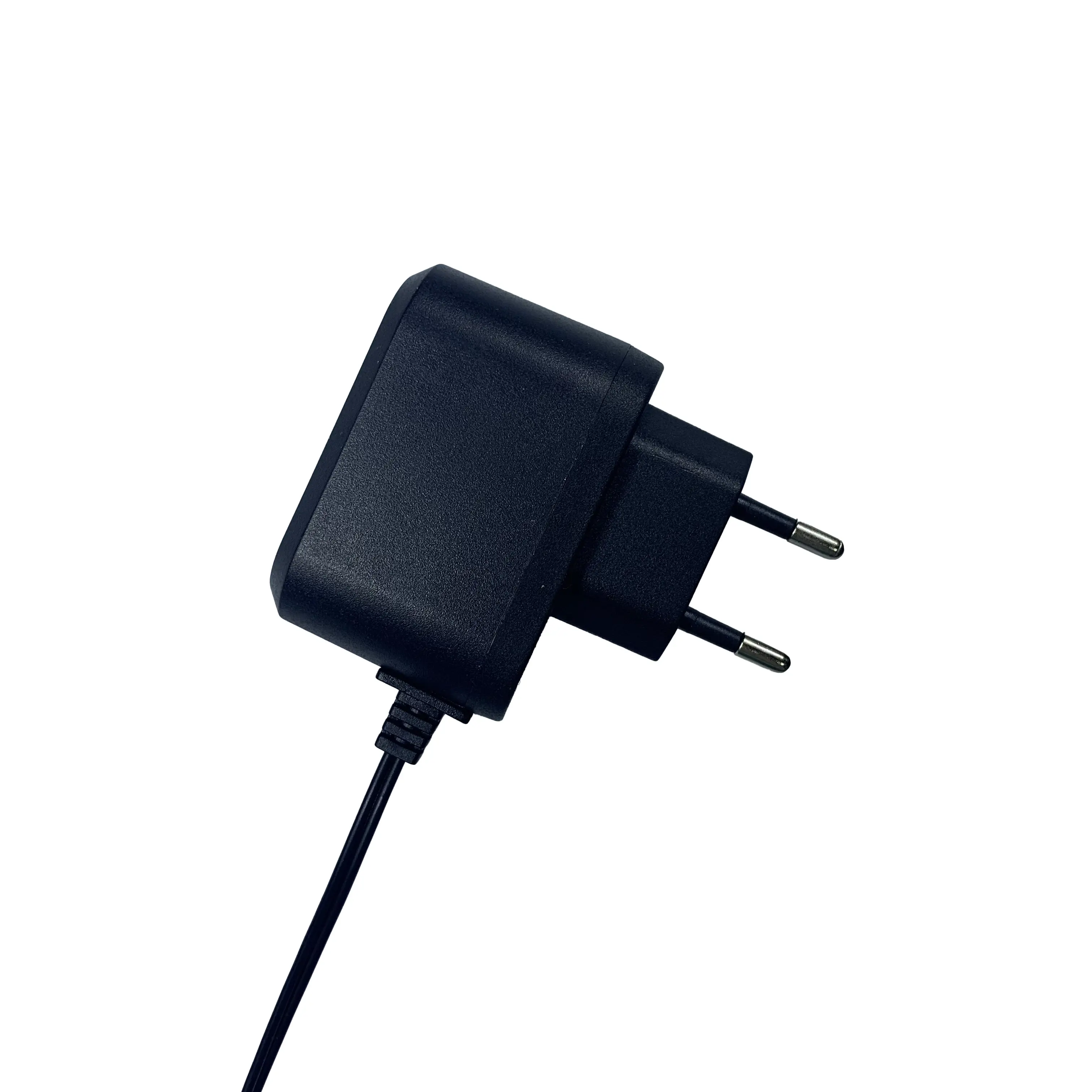

Product Pictures

APPLICATION

GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

LCD screen

Solar Industry

Railway Signal System

LED Screen

Outdoor Ad

AC/DC 12V 1A Industrial power supply is engineered to provide consistent and reliable power output. Its high-quality components ensure efficient power conversion, minimize energy losses and improve overall system performance. Whether you need to power motors, control systems, or other industrial equipment, this power supply provides stable, clean output to ensure smooth operation.

36W industrial equipment power supply is a high-quality, versatile choice suitable for a variety of industrial applications. Its excellent safety features, reliable power output, high efficiency, user-friendliness and durability make it the perfect solution for powering your valuable equipment. With this power supply, you can rest easy knowing your operation is backed by reliable, efficient power. Upgrade your power supply today and experience the benefits of superior performance and quality.
